#Espar Air D5

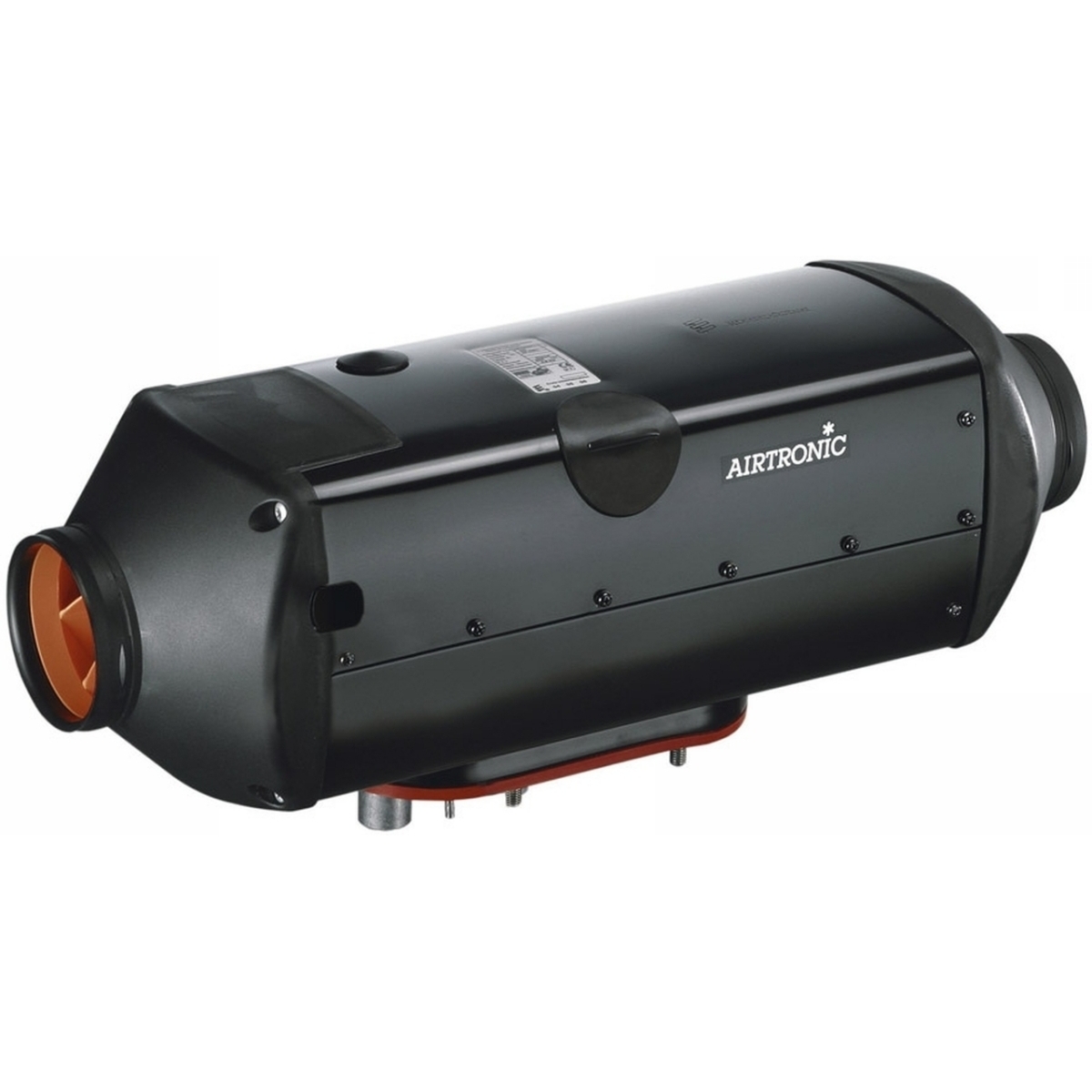

AIRTRONIC D2 / D4 / D5
V E H I C L E / MARINE H E AT E R S | A I R H E AT E R S
Eberspaecher Climate Control System’s Airtronic air heaters operate like forced air furnaces utilizing the vehicle’s / boats own fuel and power supply
to produce heat without idling the vehicle. Heaters operate quietly and cycle through four output levels to provide the optimum temperatures
at all times. Units are suitable for a variety of applications but are especially well suited for cab and sleeper heat in class 8 trucks, workshop
vehicles, and freight compartments. Airtronic heaters can also be easily combined with one of Eberspaecher’s specially designed controllers
for maximum controls and heater function.
BENEFITS OF THE ESPAR’S AIRTRONIC AIR HEATER
• Economical
• Low fuel and power consumption
• Integrated control unit
• Easy to install and maintain
• Built-in self-diagnostics
• Highest heat output available in the market
• Quick release cover for easy access to components
for maintenance
• EPA verified and CARB compliant for use anywhere
in North America
AIRTRONIC D5
Heat Output (kw/BTU)
Boost 5.5 / 18800
High 4.8 / 16400
Medium 2.7 / 9200
Low 0.15 / 0.04
Fuel Consumption (L/hr/Gal/hr)
Boost 0.66 / 0.17
High 0.58 / 0.15
Medium 0.34 / 0.09
Low 0.15 / 0.04
Electrical Consumption at 12V (amps)
*24V model available
Boost 7.1
High 6.7
Medium 2.5
Low 1.3
Weight (kg/lbs) 9.3 / 20
