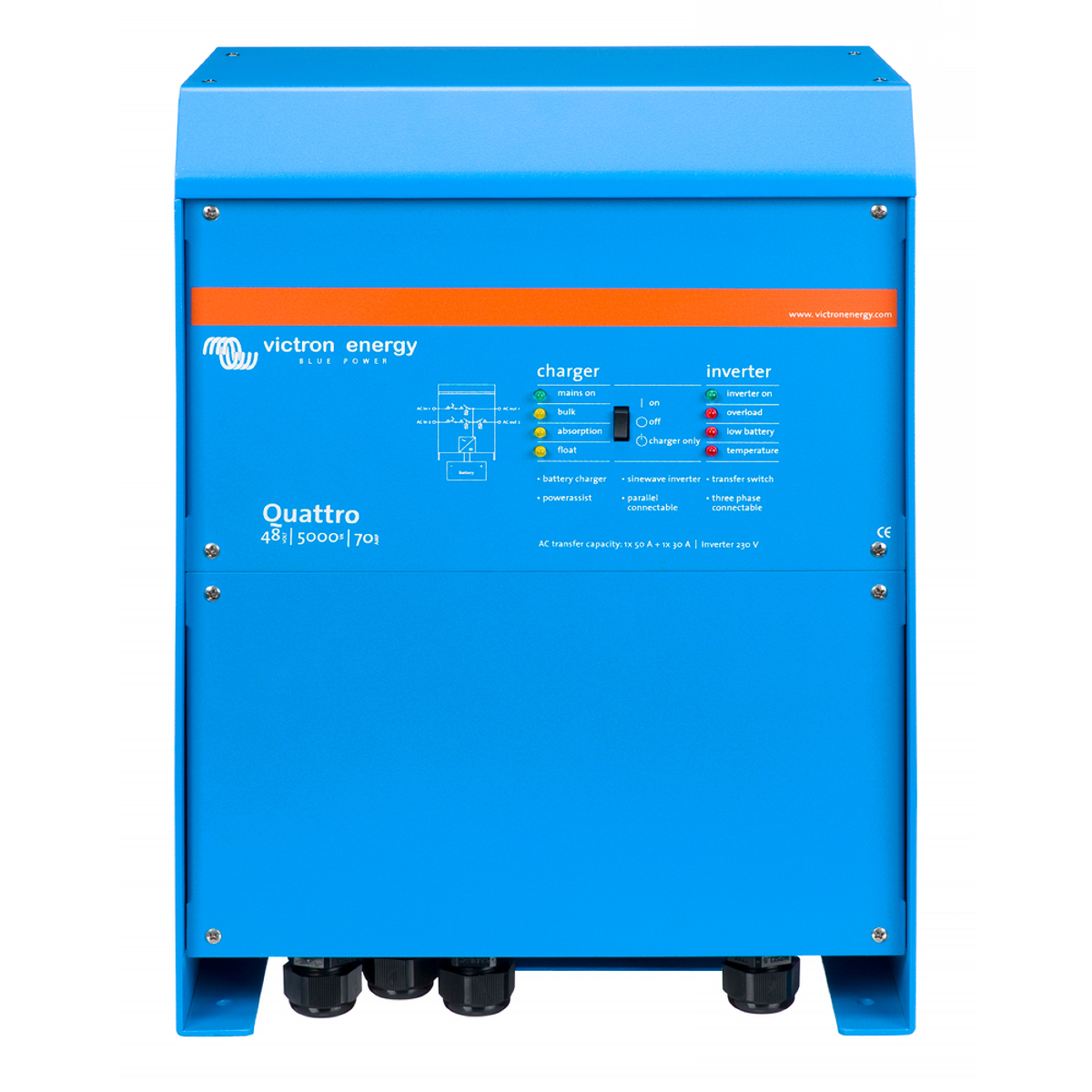

Quattro 48/5000/70-100/100 120V

Quattro 48/5000/70-100/100 120V

$1,786.70

SKU: #QUA485021100 Categories: , , Tags: , , , , ,

Description

#QUA485021100

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Models:3000VA, 5000VA, 8000VA, 10000VA, 15000VA
Two AC Inputs & two AC Outputs
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattro’s can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backup-generator and more…

https://www.victronenergy.com/upload/documents/Datasheet-Quattro-3kVA-15kVA-EN.pdf

https://www.victronenergy.com/upload/documents/MultiPlus-Quattro-Inverter-24V-48V-5000VA.PDF

https://www.victronenergy.com/upload/documents/Manual-Quattro-5k-10k-120V-(firmware-xxxx4xx)-EN-ES.pdf



Notice
Warning: cancer and reproductive harm
p65warnings.ca.gov/

These warnings are not an indication that these products are violating any safety standards or regulations.

However, as our products might be sold in the state of California, we are legally obliged to inform customers about the potential presence of these chemicals in our products.

Additional information

Weight 66 lbs
Dimensions 9.4 × 12.9 × 17.5 in
